HSW2-272VHDR+

In Stock: 253

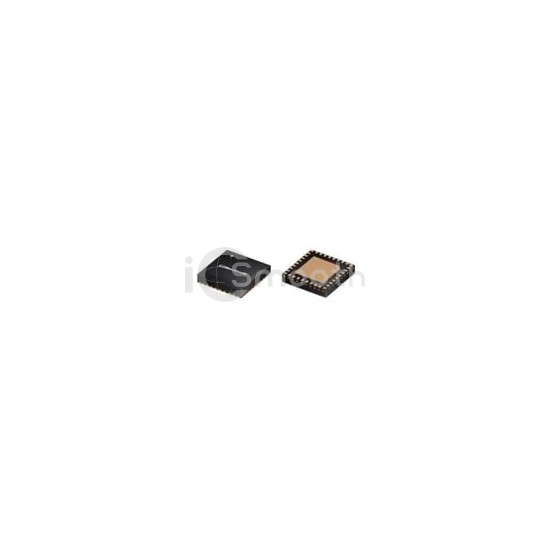

HSW2-272VHDR+ - Mini-Circuits - RF Switches
REF: HSW2-272VHDR+ Mini-Circuits
HSW2-272VHDR+

Mini-Circuits

IC RF SWITCH SPDT 2.7GHZ 32QFN

HSW2-272VHDR+ is a RF Switches manufactured by Mini-Circuits. IC RF SWITCH SPDT 2.7GHZ 32QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 32-VFQFN Exposed Pad, frequency range 30MHz ~ 2.7GHz.

Datasheet Request a Quote

In Stock: 253

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range30MHz ~ 2.7GHz
Isolation24dB
Insertion Loss0.7dB
Test Frequency2.7GHz
P1dB-
IIP385dBm
Features-
Impedance50Ohm
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
