SMAJ5946BE3/TR13

In Stock: 7,331

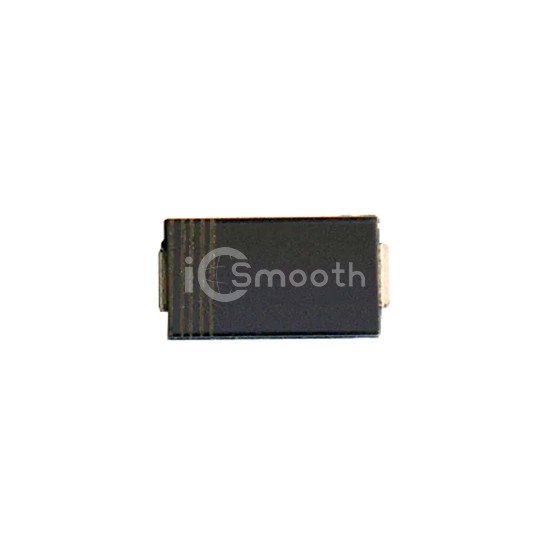

SMAJ5946BE3/TR13 - Microsemi Corporation - Diodes - Zener - Single
REF: SMAJ5946BE3/TR13 Microsemi Corporation
SMAJ5946BE3/TR13

Microsemi Corporation

DIODE ZENER 75V 3W DO214AC

SMAJ5946BE3/TR13 is a Diodes - Zener - Single manufactured by Microsemi Corporation. DIODE ZENER 75V 3W DO214AC. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C, package / case DO-214AC, SMA, power - max 3 W.

Datasheet Request a Quote

In Stock: 7,331

Specifications

11 parameters
Product StatusObsolete
Voltage - Zener (Nom) (Vz)75 V
Tolerance±5%
Power - Max3 W
Impedance (Max) (Zzt)140 Ohms
Current - Reverse Leakage @ Vr1 µA @ 56 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMAJ)
