NX2305CSTR

In Stock: 4,323

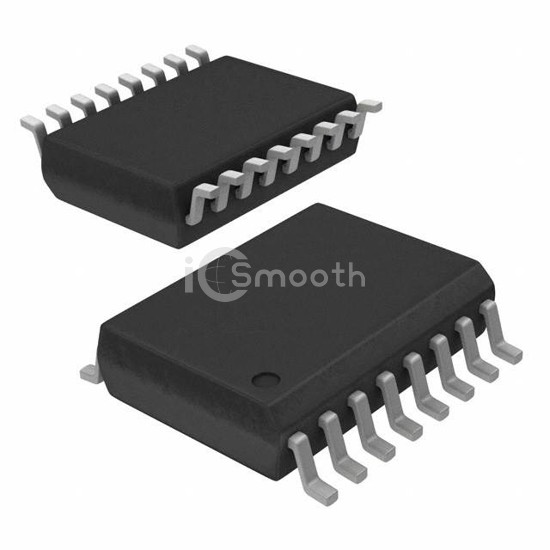

NX2305CSTR - Microsemi Corporation - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: NX2305CSTR Microsemi Corporation
NX2305CSTR

Microsemi Corporation

IC PWM CONTROLLER

NX2305CSTR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microsemi Corporation. IC PWM CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply (vcc/vdd) 8.2V ~ 14V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 4,323

Specifications

18 parameters
Product StatusObsolete
Output TypePWM
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8.2V ~ 14V
Frequency - Switching300kHz
Duty Cycle (Max)94%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable, Power Good, Soft Start
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
