LX8816-04CDF

In Stock: 3,859

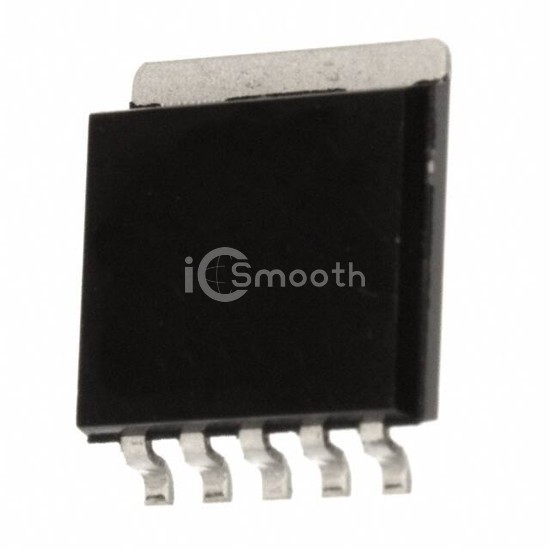

LX8816-04CDF - Microsemi Corporation - PMIC - Voltage Regulators - Linear
REF: LX8816-04CDF Microsemi Corporation
LX8816-04CDF

Microsemi Corporation

IC REG LIN POS ADJ 1A/1A 5SPAK

LX8816-04CDF is a PMIC - Voltage Regulators - Linear manufactured by Microsemi Corporation. IC REG LIN POS ADJ 1A/1A 5SPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case SPak-5 (5 leads + Tab), current - supply (max) 6 A.

Datasheet Request a Quote

In Stock: 3,859

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable (Fixed)
Number of Regulators2
Voltage - Input (Max)10V
Voltage - Output (Min/Fixed)1.25V (3.3V)
Voltage - Output (Max)5.5V
Voltage Dropout (Max)1.3V @ 1A, 1.3V @ 1A
Current - Output1A, 1A
Current - Quiescent (Iq)3.8 mA
Current - Supply (Max)6 A
PSRR75dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSPak-5 (5 leads + Tab)
Supplier Device Package5-SPAK
