Name: LX8580A-00CDD
Brand: Microsemi Corporation
SKU: LX8580A-00CDD
Availability: InStock

REF: LX8580A-00CDD Microsemi Corporation

LX8580A-00CDD

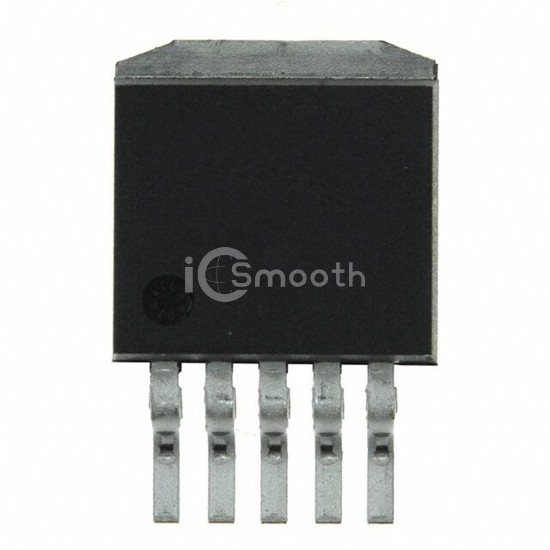

IC REG LIN POS ADJ 7.5A TO263-5

LX8580A-00CDD is a PMIC - Voltage Regulators - Linear manufactured by Microsemi Corporation. IC REG LIN POS ADJ 7.5A TO263-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 7.5A.

Datasheet Request a Quote

In Stock: 9,159

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	13V
Voltage - Output (Min/Fixed)	2V
Voltage - Output (Max)	2.85V
Voltage Dropout (Max)	0.7V @ 7.5A
Current - Output	7.5A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	-
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
