Name: JANTXV2N2329A
Brand: Microsemi Corporation
SKU: JANTXV2N2329A
Availability: InStock

REF: JANTXV2N2329A Microsemi Corporation

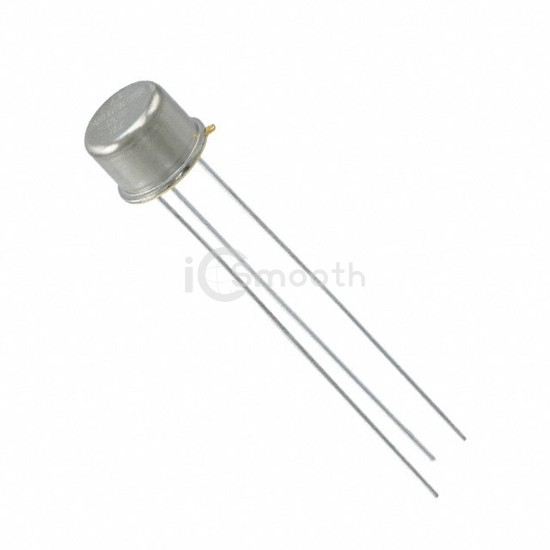

JANTXV2N2329A

SCR 400V TO5

JANTXV2N2329A is a Thyristors - SCRs manufactured by Microsemi Corporation. SCR 400V TO5. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, package / case TO-205AA, TO-5-3 Metal Can.

Datasheet Request a Quote

In Stock: 9,698

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	600 mV
Current - Gate Trigger (Igt) (Max)	20 µA
Voltage - On State (Vtm) (Max)	-
Current - On State (It (AV)) (Max)	220 mA
Current - On State (It (RMS)) (Max)	-
Current - Hold (Ih) (Max)	2 mA

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	-
SCR Type	Sensitive Gate
Operating Temperature	-65°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-205AA, TO-5-3 Metal Can
Supplier Device Package	TO-5
