JANTX2N4857

In Stock: 8,350

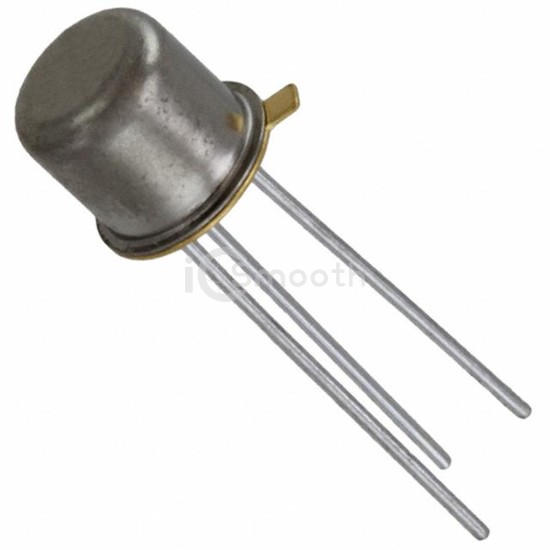

JANTX2N4857 - Microsemi Corporation - Transistors - JFETs
REF: JANTX2N4857 Microsemi Corporation
JANTX2N4857

Microsemi Corporation

JFET N-CH 40V 360MW TO-18

JANTX2N4857 is a Transistors - JFETs manufactured by Microsemi Corporation. JFET N-CH 40V 360MW TO-18. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-206AA, TO-18-3 Metal Can, power - max 360 mW.

Datasheet Request a Quote

In Stock: 8,350

Specifications

14 parameters
Product StatusObsolete
FET TypeN-Channel
Voltage - Breakdown (V(BR)GSS)40 V
Drain to Source Voltage (Vdss)40 V
Current - Drain (Idss) @ Vds (Vgs=0)100 mA @ 15 V
Current Drain (Id) - Max-
Voltage - Cutoff (VGS off) @ Id6 V @ 500 pA
Input Capacitance (Ciss) (Max) @ Vds18pF @ 10V (VGS)
Resistance - RDS(On)40 Ohms
Power - Max360 mW
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-206AA, TO-18-3 Metal Can
Supplier Device PackageTO-18
