JANTX2N3027

In Stock: 7

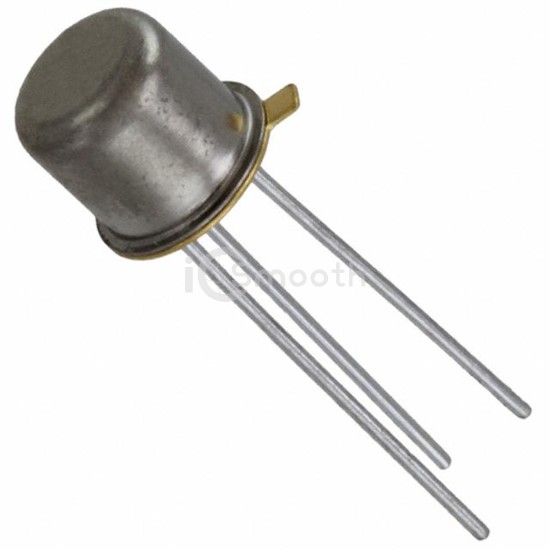

JANTX2N3027 - Microsemi Corporation - Thyristors - SCRs
REF: JANTX2N3027 Microsemi Corporation
JANTX2N3027

Microsemi Corporation

SCR 30V 250MA TO18

JANTX2N3027 is a Thyristors - SCRs manufactured by Microsemi Corporation. SCR 30V 250MA TO18. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C, package / case TO-206AA, TO-18-3 Metal Can.

Datasheet Request a Quote

In Stock: 7

Specifications

15 parameters
Product StatusDiscontinued at Digi-Key
Voltage - Off State30 V
Voltage - Gate Trigger (Vgt) (Max)800 mV
Current - Gate Trigger (Igt) (Max)200 µA
Voltage - On State (Vtm) (Max)1.5 V
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)250 mA
Current - Hold (Ih) (Max)5 mA
Current - Off State (Max)100 nA
Current - Non Rep. Surge 50, 60Hz (Itsm)5A, 8A
SCR TypeSensitive Gate
Operating Temperature-65°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-206AA, TO-18-3 Metal Can
Supplier Device PackageTO-18
