JAN2N2221AL

In Stock: 3,158

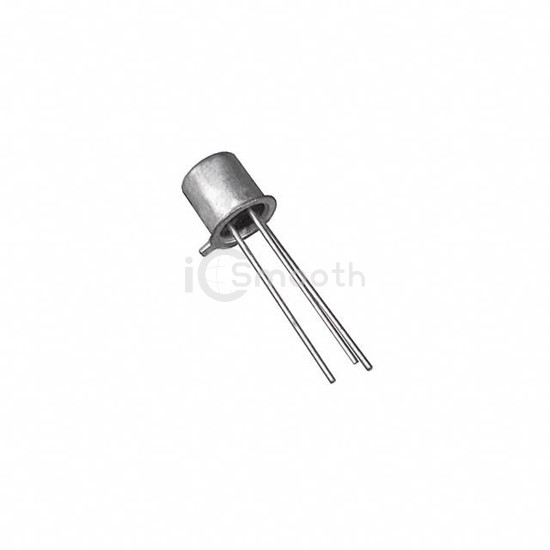

JAN2N2221AL - Microsemi Corporation - Transistors - Bipolar (BJT) - Single
REF: JAN2N2221AL Microsemi Corporation
JAN2N2221AL

Microsemi Corporation

TRANS NPN 50V 0.8A TO18

JAN2N2221AL is a Transistors - Bipolar (BJT) - Single manufactured by Microsemi Corporation. TRANS NPN 50V 0.8A TO18. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-206AA, TO-18-3 Metal Can, current - collector (ic) (max) 800 mA.

Datasheet Request a Quote

In Stock: 3,158

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)800 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic1V @ 50mA, 500mA
Current - Collector Cutoff (Max)50nA
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 150mA, 10V
Power - Max500 mW
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-206AA, TO-18-3 Metal Can
Supplier Device PackageTO-18 (TO-206AA)
