Name: APTGT200A602G
Brand: Microsemi Corporation
SKU: APTGT200A602G
Availability: InStock

REF: APTGT200A602G Microsemi Corporation

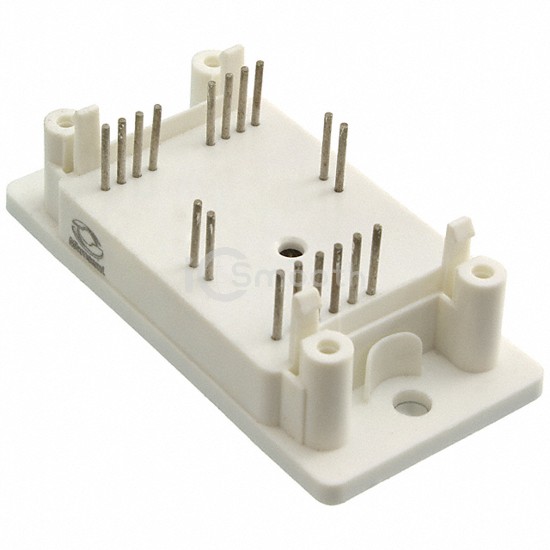

APTGT200A602G

IGBT MODULE 600V 290A 625W SP2

APTGT200A602G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 600V 290A 625W SP2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP2, current - collector (ic) (max) 290 A.

Datasheet Request a Quote

In Stock: 2,690

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	290 A
Power - Max	625 W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 200A
Current - Collector Cutoff (Max)	50 µA

Input Capacitance (Cies) @ Vce	12.3 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP2
Supplier Device Package	SP2
