APTGT100A120D1G

In Stock: 7,274

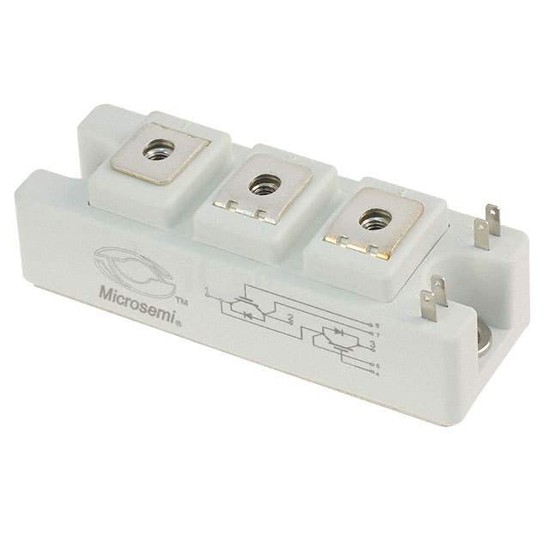

APTGT100A120D1G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGT100A120D1G Microsemi Corporation
APTGT100A120D1G

Microsemi Corporation

IGBT MODULE 1200V 150A 520W D1

APTGT100A120D1G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 150A 520W D1. Key specifications: mounting type Chassis Mount, package / case D1, current - collector (ic) (max) 150 A, power - max 520 W.

Datasheet Request a Quote

In Stock: 7,274

Specifications

15 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)150 A
Power - Max520 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 100A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce7 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseD1
Supplier Device PackageD1
