APTGL180A1202G

In Stock: 2

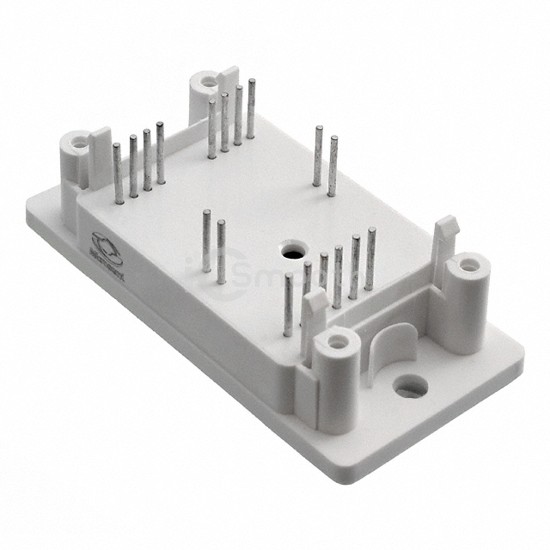

APTGL180A1202G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGL180A1202G Microsemi Corporation
APTGL180A1202G

Microsemi Corporation

IGBT MODULE 1200V 220A 750W SP2

APTGL180A1202G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 220A 750W SP2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP2, current - collector (ic) (max) 220 A.

Datasheet Request a Quote

In Stock: 2

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)220 A
Power - Max750 W
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 150A
Current - Collector Cutoff (Max)300 µA
Input Capacitance (Cies) @ Vce9.3 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP2
Supplier Device PackageSP2
