APTGF90DU60TG

In Stock: 8,757

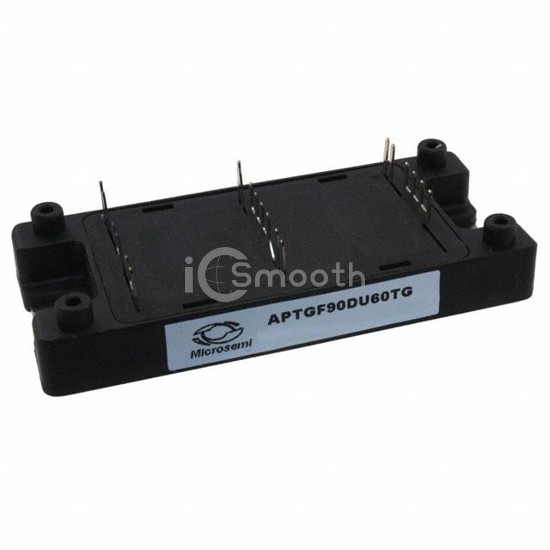

APTGF90DU60TG - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF90DU60TG Microsemi Corporation
APTGF90DU60TG

Microsemi Corporation

IGBT MODULE 600V 110A 416W SP4

APTGF90DU60TG is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 600V 110A 416W SP4. Key specifications: mounting type Chassis Mount, package / case SP4, current - collector (ic) (max) 110 A, power - max 416 W.

Datasheet Request a Quote

In Stock: 8,757

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationDual, Common Source
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)110 A
Power - Max416 W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 90A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce4.3 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
