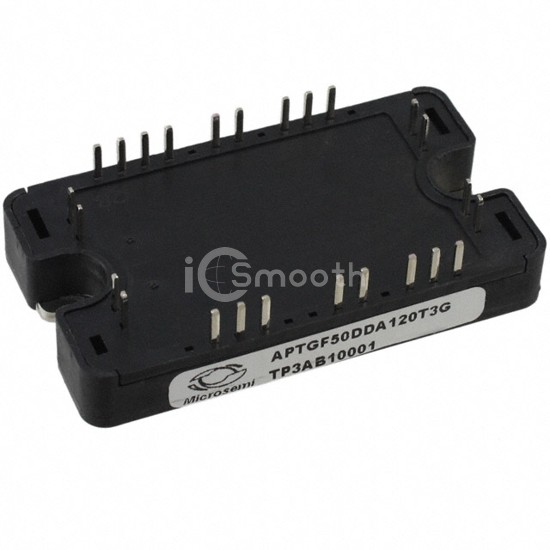

APTGF50DDA120T3G

In Stock: 6,727
APTGF50DDA120T3G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF50DDA120T3G Microsemi Corporation
APTGF50DDA120T3G

Microsemi Corporation

IGBT MODULE 1200V 70A 312W SP3

APTGF50DDA120T3G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 70A 312W SP3. Key specifications: mounting type Chassis Mount, package / case SP3, current - collector (ic) (max) 70 A, power - max 312 W.

Datasheet Request a Quote

In Stock: 6,727

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationDual Boost Chopper
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)70 A
Power - Max312 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 50A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce3.45 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
