Name: APTGF330DA60D3G
Brand: Microsemi Corporation
SKU: APTGF330DA60D3G
Availability: InStock

REF: APTGF330DA60D3G Microsemi Corporation

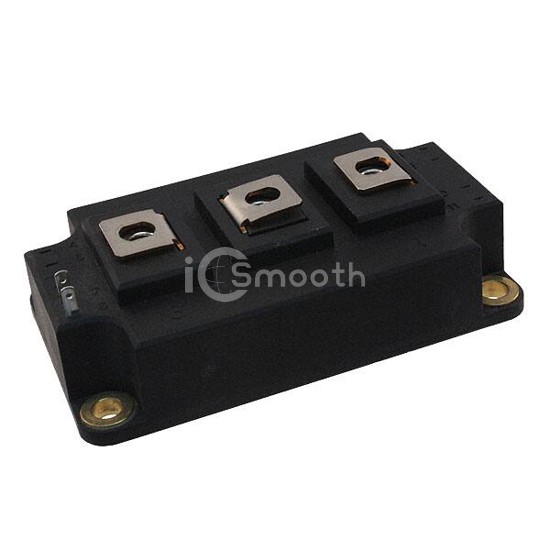

APTGF330DA60D3G

IGBT MODULE 600V 460A 1400W D3

APTGF330DA60D3G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 600V 460A 1400W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case D-3 Module, current - collector (ic) (max) 460 A.

Datasheet Request a Quote

In Stock: 4,328

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	NPT
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	460 A
Power - Max	1400 W
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 400A
Current - Collector Cutoff (Max)	750 µA

Input Capacitance (Cies) @ Vce	18 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	D-3 Module
Supplier Device Package	D3
