APTGF330A60D3G

In Stock: 2,468

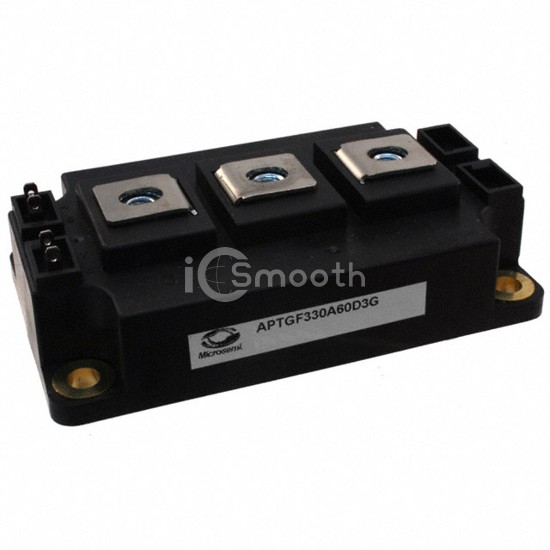

APTGF330A60D3G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF330A60D3G Microsemi Corporation
APTGF330A60D3G

Microsemi Corporation

IGBT MODULE 600V 520A 1560W D3

APTGF330A60D3G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 600V 520A 1560W D3. Key specifications: mounting type Chassis Mount, package / case D-3 Module, current - collector (ic) (max) 520 A, power - max 1560 W.

Datasheet Request a Quote

In Stock: 2,468

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)520 A
Power - Max1560 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 400A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce18 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
