APTGF300DA120G

In Stock: 5,518

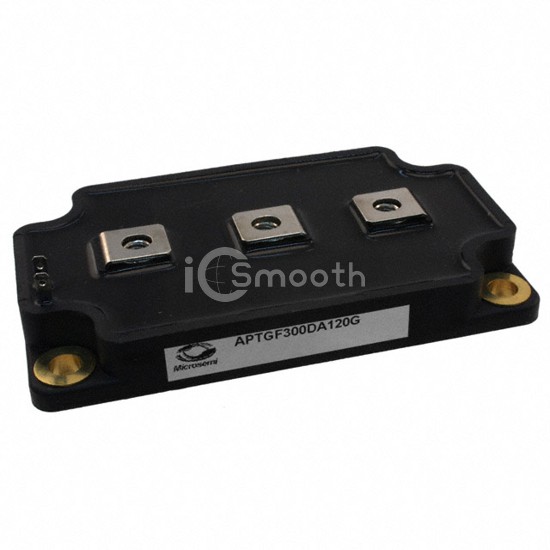

APTGF300DA120G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF300DA120G Microsemi Corporation
APTGF300DA120G

Microsemi Corporation

IGBT MODULE 1200V 400A 1780W SP6

APTGF300DA120G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 400A 1780W SP6. Key specifications: mounting type Chassis Mount, package / case SP6, current - collector (ic) (max) 400 A, power - max 1780 W.

Datasheet Request a Quote

In Stock: 5,518

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)400 A
Power - Max1780 W
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 300A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce21 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
