APTGF165A60D1G

In Stock: 3,193

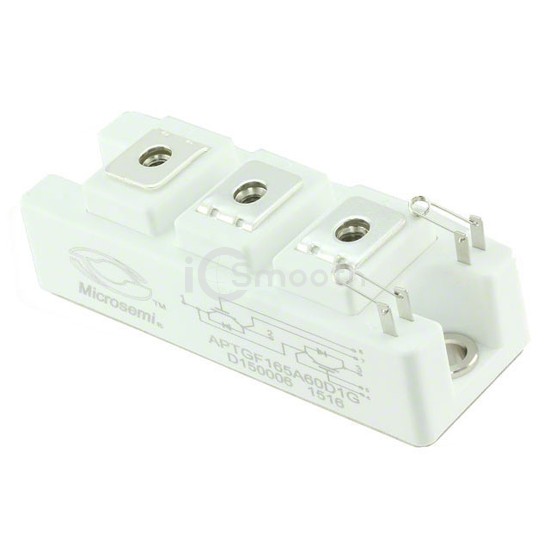

APTGF165A60D1G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF165A60D1G Microsemi Corporation
APTGF165A60D1G

Microsemi Corporation

IGBT MODULE 600V 230A 781W D1

APTGF165A60D1G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 600V 230A 781W D1. Key specifications: mounting type Chassis Mount, package / case D1, current - collector (ic) (max) 230 A, power - max 781 W.

Datasheet Request a Quote

In Stock: 3,193

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)230 A
Power - Max781 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 200A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce9 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseD1
Supplier Device PackageD1
