APTGF150DA120TG

In Stock: 9,009

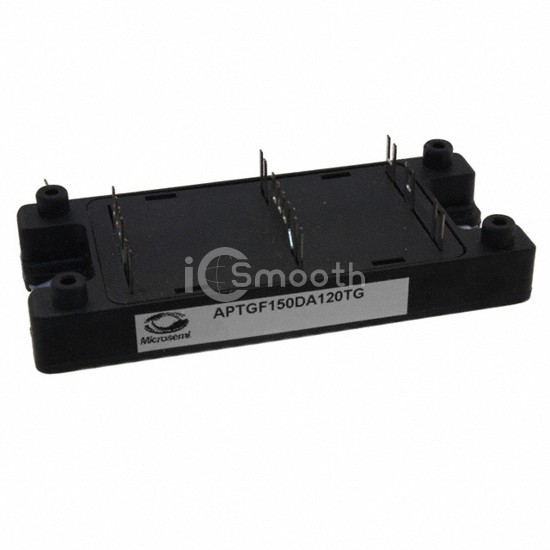

APTGF150DA120TG - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF150DA120TG Microsemi Corporation
APTGF150DA120TG

Microsemi Corporation

IGBT MODULE 1200V 200A 961W SP4

APTGF150DA120TG is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 200A 961W SP4. Key specifications: mounting type Chassis Mount, package / case SP4, current - collector (ic) (max) 200 A, power - max 961 W.

Datasheet Request a Quote

In Stock: 9,009

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)200 A
Power - Max961 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 150A
Current - Collector Cutoff (Max)350 µA
Input Capacitance (Cies) @ Vce10.2 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
