APTGF150A120T3WG

In Stock: 9,002

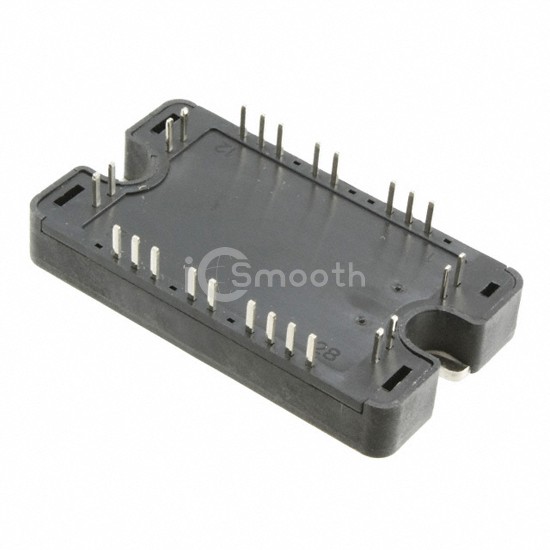

APTGF150A120T3WG - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF150A120T3WG Microsemi Corporation
APTGF150A120T3WG

Microsemi Corporation

IGBT MODULE 1200V 210A 961W SP3

APTGF150A120T3WG is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 210A 961W SP3. Key specifications: mounting type Chassis Mount, package / case SP3, current - collector (ic) (max) 210 A, power - max 961 W.

Datasheet Request a Quote

In Stock: 9,002

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)210 A
Power - Max961 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 150A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce9.3 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
