APTGF100A1202G

In Stock: 8,545

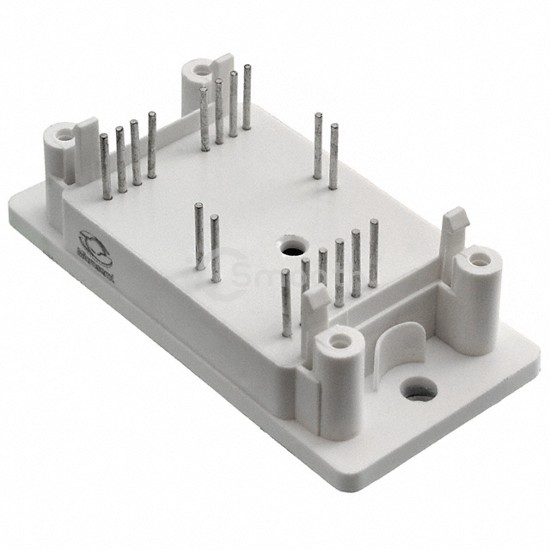

APTGF100A1202G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTGF100A1202G Microsemi Corporation
APTGF100A1202G

Microsemi Corporation

IGBT MODULE 1200V 135A 568W SP2

APTGF100A1202G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 135A 568W SP2. Key specifications: mounting type Chassis Mount, package / case SP2, current - collector (ic) (max) 135 A, power - max 568 W.

Datasheet Request a Quote

In Stock: 8,545

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)135 A
Power - Max568 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 100A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce6.5 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP2
Supplier Device PackageSP2
