APTCV90TL12T3G

In Stock: 5,803

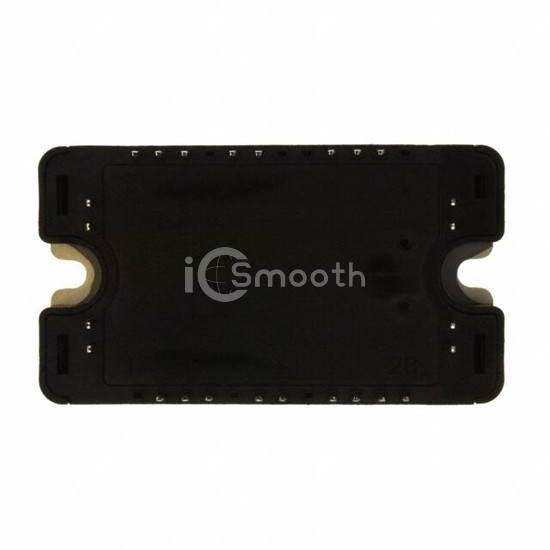

APTCV90TL12T3G - Microsemi Corporation - Transistors - IGBTs - Modules
REF: APTCV90TL12T3G Microsemi Corporation
APTCV90TL12T3G

Microsemi Corporation

IGBT MODULE 1200V 80A 280W SP3

APTCV90TL12T3G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 80A 280W SP3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 5,803

Specifications

15 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
ConfigurationThree Level Inverter - IGBT, FET
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Power - Max280 W
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 50A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce2.77 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
