APT15GN120KG

In Stock: 1,923
APT15GN120KG - Microsemi Corporation - Transistors - IGBTs - Single
REF: APT15GN120KG Microsemi Corporation
APT15GN120KG

Microsemi Corporation

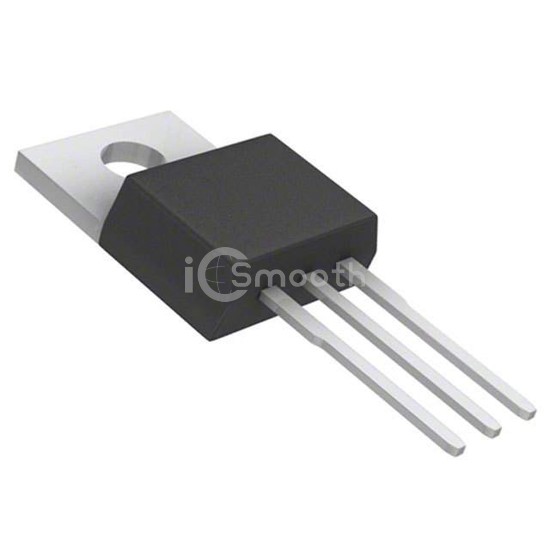

IGBT 1200V 45A 195W TO220

APT15GN120KG is a Transistors - IGBTs - Single manufactured by Microsemi Corporation. IGBT 1200V 45A 195W TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 45 A.

Datasheet Request a Quote

In Stock: 1,923

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)45 A
Current - Collector Pulsed (Icm)45 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 15A
Power - Max195 W
Switching Energy410µJ (on), 950µJ (off)
Input TypeStandard
Gate Charge90 nC
Td (on/off) @ 25°C10ns/150ns
Test Condition800V, 15A, 4.3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220 [K]
