APT11GF120KRG

In Stock: 6,470
APT11GF120KRG - Microsemi Corporation - Transistors - IGBTs - Single
REF: APT11GF120KRG Microsemi Corporation
APT11GF120KRG

Microsemi Corporation

IGBT 1200V 25A 156W TO220

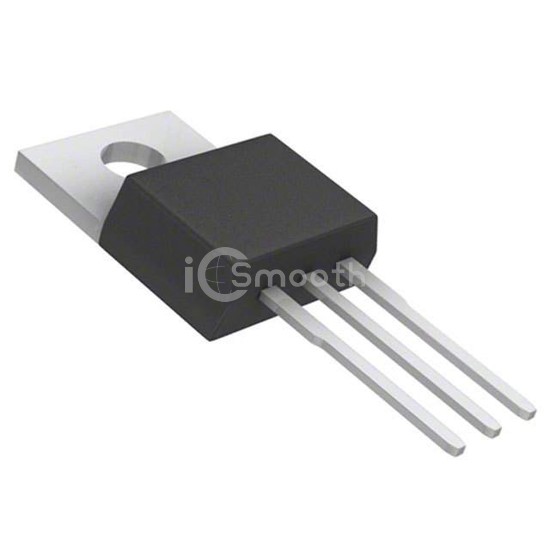

APT11GF120KRG is a Transistors - IGBTs - Single manufactured by Microsemi Corporation. IGBT 1200V 25A 156W TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 6,470

Specifications

17 parameters
Product StatusObsolete
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)25 A
Current - Collector Pulsed (Icm)44 A
Vce(on) (Max) @ Vge, Ic3V @ 15V, 8A
Power - Max156 W
Switching Energy300µJ (on), 285µJ (off)
Input TypeStandard
Gate Charge65 nC
Td (on/off) @ 25°C7ns/100ns
Test Condition800V, 8A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220 [K]
