1PMT5914/TR13

In Stock: 6,584

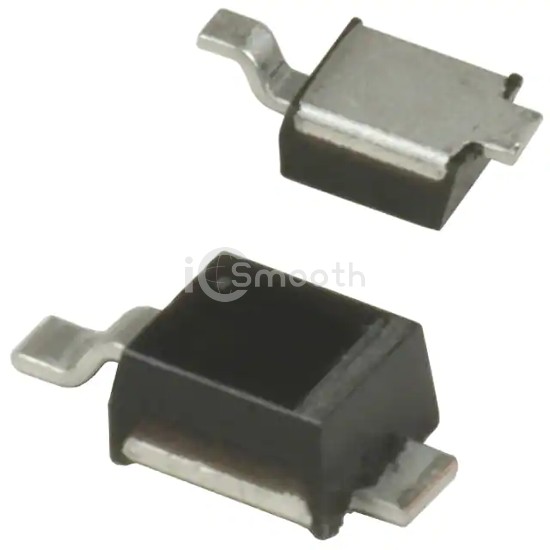

1PMT5914/TR13 - Microsemi Corporation - Diodes - Zener - Single
REF: 1PMT5914/TR13 Microsemi Corporation
1PMT5914/TR13

Microsemi Corporation

DIODE ZENER 3.6V 3W DO216AA

1PMT5914/TR13 is a Diodes - Zener - Single manufactured by Microsemi Corporation. DIODE ZENER 3.6V 3W DO216AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case DO-216AA, power - max 3 W.

Datasheet Request a Quote

In Stock: 6,584

Specifications

11 parameters
Product StatusObsolete
Voltage - Zener (Nom) (Vz)3.6 V
Tolerance±20%
Power - Max3 W
Impedance (Max) (Zzt)9 Ohms
Current - Reverse Leakage @ Vr75 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseDO-216AA
Supplier Device PackageDO-216AA
