1N5954AG

In Stock: 4,173

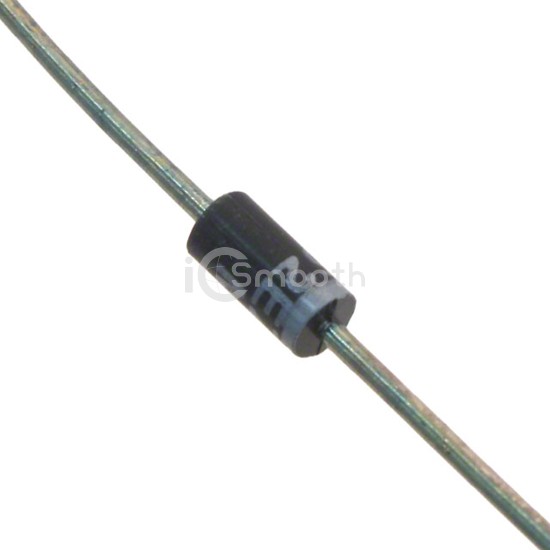

1N5954AG - Microsemi Corporation - Diodes - Zener - Single
REF: 1N5954AG Microsemi Corporation
1N5954AG

Microsemi Corporation

DIODE ZENER 160V 1.25W DO204AL

1N5954AG is a Diodes - Zener - Single manufactured by Microsemi Corporation. DIODE ZENER 160V 1.25W DO204AL. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C, package / case DO-204AL, DO-41, Axial, power - max 1.25 W.

Datasheet Request a Quote

In Stock: 4,173

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)160 V
Tolerance±10%
Power - Max1.25 W
Impedance (Max) (Zzt)700 Ohms
Current - Reverse Leakage @ Vr1 µA @ 121.6 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-65°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-204AL (DO-41)
