1N5943DG

In Stock: 8,922

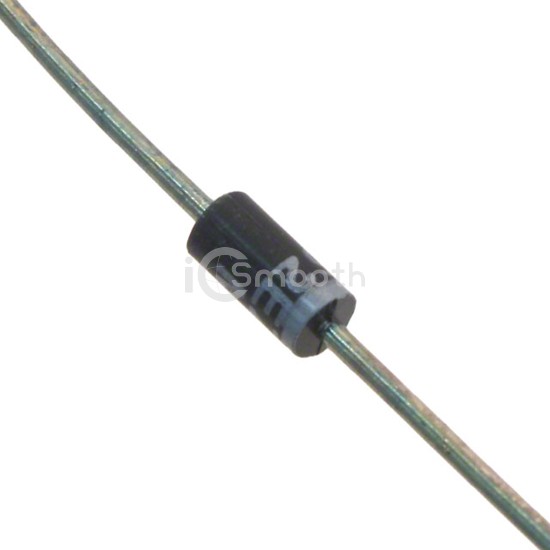

1N5943DG - Microsemi Corporation - Diodes - Zener - Single
REF: 1N5943DG Microsemi Corporation
1N5943DG

Microsemi Corporation

DIODE ZENER 56V 1.25W DO204AL

1N5943DG is a Diodes - Zener - Single manufactured by Microsemi Corporation. DIODE ZENER 56V 1.25W DO204AL. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C, package / case DO-204AL, DO-41, Axial, power - max 1.25 W.

Datasheet Request a Quote

In Stock: 8,922

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)56 V
Tolerance±1%
Power - Max1.25 W
Impedance (Max) (Zzt)86 Ohms
Current - Reverse Leakage @ Vr1 µA @ 42.6 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-65°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-204AL (DO-41)
