1N5523D-1

In Stock: 7,174

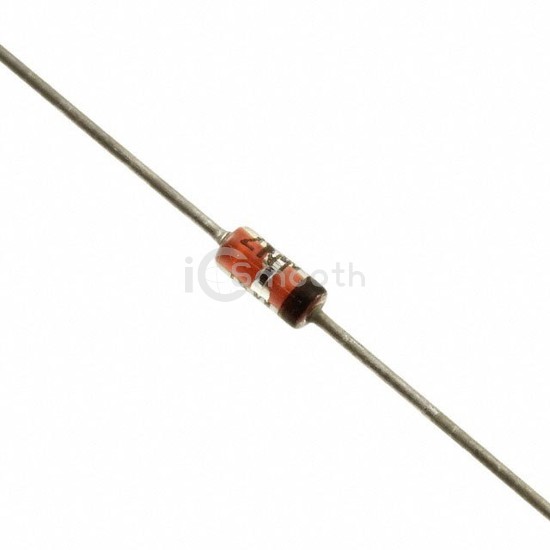

1N5523D-1 - Microsemi Corporation - Diodes - Zener - Single
REF: 1N5523D-1 Microsemi Corporation
1N5523D-1

Microsemi Corporation

DIODE ZENER 5.1V 500MW DO35

1N5523D-1 is a Diodes - Zener - Single manufactured by Microsemi Corporation. DIODE ZENER 5.1V 500MW DO35. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C (TJ), package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 7,174

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)5.1 V
Tolerance±1%
Power - Max500 mW
Impedance (Max) (Zzt)26 Ohms
Current - Reverse Leakage @ Vr2 µA @ 2.5 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 200 mA
Operating Temperature-65°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-35 (DO-204AH)
