Name: 1N5242BDO35E3
Brand: Microsemi Corporation
SKU: 1N5242BDO35E3
Availability: InStock

REF: 1N5242BDO35E3 Microsemi Corporation

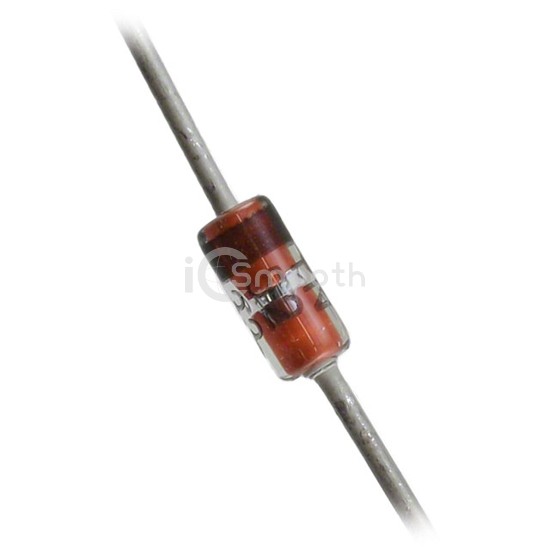

1N5242BDO35E3

DIODE ZENER 12V 500MW DO35

1N5242BDO35E3 is a Diodes - Zener - Single manufactured by Microsemi Corporation. DIODE ZENER 12V 500MW DO35. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C, package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 1,607

Specifications

11 parameters

Product Status	Discontinued at Digi-Key
Voltage - Zener (Nom) (Vz)	12 V
Tolerance	±5%
Power - Max	500 mW
Impedance (Max) (Zzt)	30 Ohms
Current - Reverse Leakage @ Vr	1 µA @ 9.1 V

Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Operating Temperature	-65°C ~ 175°C
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35
