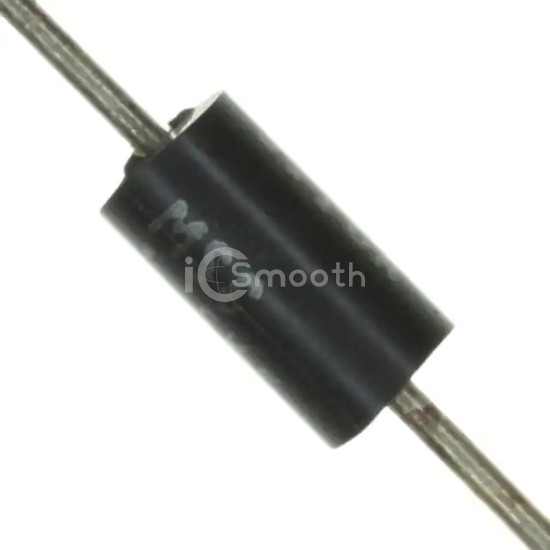

Name: 1.5KE8.2CAE3/TR13
Brand: Microsemi Corporation
SKU: 1.5KE8.2CAE3/TR13
Price: 0.31 USD
Availability: InStock

REF: 1.5KE8.2CAE3/TR13 Microsemi Corporation

1.5KE8.2CAE3/TR13

Microsemi Corporation

TVS DIODE 7.02VWM 12.1VC CASE-1

1.5KE8.2CAE3/TR13 is a TVS - Diodes manufactured by Microsemi Corporation. TVS DIODE 7.02VWM 12.1VC CASE-1. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 2,898

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7.02V
Voltage - Breakdown (Min)	7.79V
Voltage - Clamping (Max) @ Ipp	12.1V
Current - Peak Pulse (10/1000µs)	124A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	CASE-1
