Name: 1.5KE10CAE3/TR13
Brand: Microsemi Corporation
SKU: 1.5KE10CAE3/TR13
Price: 0.31 USD
Availability: InStock

REF: 1.5KE10CAE3/TR13 Microsemi Corporation

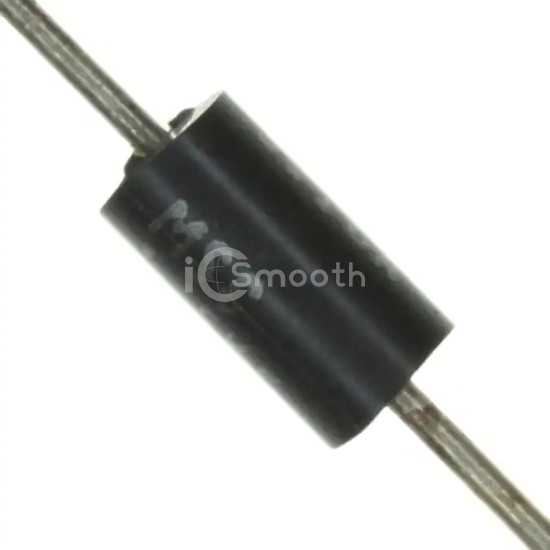

1.5KE10CAE3/TR13

Microsemi Corporation

TVS DIODE 8.55VWM 14.5VC CASE-1

1.5KE10CAE3/TR13 is a TVS - Diodes manufactured by Microsemi Corporation. TVS DIODE 8.55VWM 14.5VC CASE-1. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 1,881

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	8.55V
Voltage - Breakdown (Min)	9.5V
Voltage - Clamping (Max) @ Ipp	14.5V
Current - Peak Pulse (10/1000µs)	103A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	CASE-1
