HAL566UA-K

In Stock: 6,657

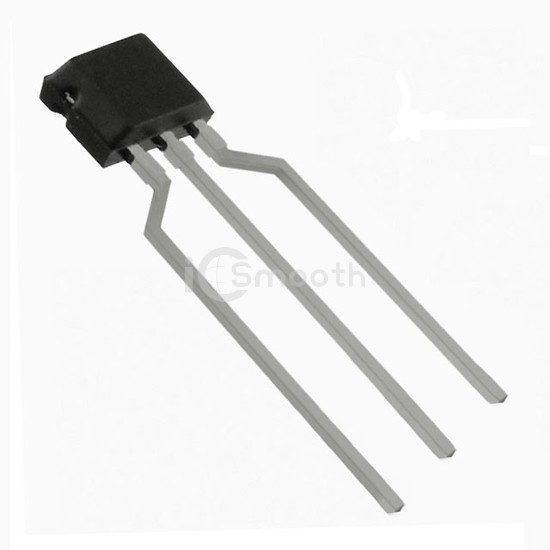

HAL566UA-K - TDK-Micronas GmbH - Magnetic Sensors - Switches (Solid State)
REF: HAL566UA-K TDK-Micronas GmbH
HAL566UA-K

TDK-Micronas GmbH

MAGNETIC SWITCH UNIPOL TO92UA-1

HAL566UA-K is a Magnetic Sensors - Switches (Solid State) manufactured by TDK-Micronas GmbH. MAGNETIC SWITCH UNIPOL TO92UA-1. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 140°C (TA), voltage - supply 4V ~ 24V, package / case TO-226-3, TO-92-3 (TO-226AA) Formed Leads.

Datasheet Request a Quote

In Stock: 6,657

Specifications

15 parameters
Product StatusObsolete
FunctionUnipolar Switch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range5.7mT Trip, 3.4mT Release
Test Condition25°C
Voltage - Supply4V ~ 24V
Current - Supply (Max)17mA
Current - Output (Max)-
Output TypeOpen Drain
FeaturesTemperature Compensated
Operating Temperature-40°C ~ 140°C (TA)
Mounting TypeThrough Hole
Supplier Device PackageTO-92UA-1
Package / CaseTO-226-3, TO-92-3 (TO-226AA) Formed Leads
