HAL566UA-E

In Stock: 9,695
HAL566UA-E - TDK-Micronas GmbH - Magnetic Sensors - Switches (Solid State)
REF: HAL566UA-E TDK-Micronas GmbH

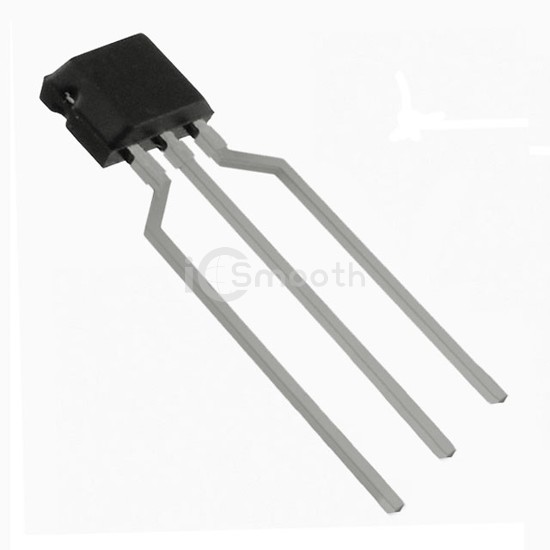

HAL566UA-E

TDK-Micronas GmbH

MAGNETIC SWITCH UNIPOL TO92UA-1

HAL566UA-E is a Magnetic Sensors - Switches (Solid State) manufactured by TDK-Micronas GmbH. MAGNETIC SWITCH UNIPOL TO92UA-1. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (TJ), voltage - supply 4V ~ 24V, package / case TO-226-3, TO-92-3 (TO-226AA) Formed Leads.

Request a Quote

In Stock: 9,695

Specifications

15 parameters
Product StatusObsolete
FunctionUnipolar Switch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range5.7mT Trip, 3.4mT Release
Test Condition25°C
Voltage - Supply4V ~ 24V
Current - Supply (Max)17mA
Current - Output (Max)-
Output TypeOpen Drain
FeaturesTemperature Compensated
Operating Temperature-40°C ~ 100°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-92UA-1
Package / CaseTO-226-3, TO-92-3 (TO-226AA) Formed Leads
