HAL543UA-K

In Stock: 2,902

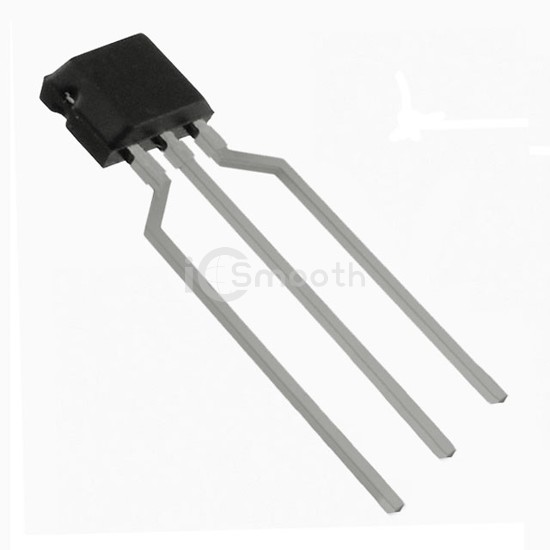

HAL543UA-K - TDK-Micronas GmbH - Magnetic Sensors - Switches (Solid State)
REF: HAL543UA-K TDK-Micronas GmbH
HAL543UA-K

TDK-Micronas GmbH

MAGNETIC SWITCH UNIPOL TO92UA-1

HAL543UA-K is a Magnetic Sensors - Switches (Solid State) manufactured by TDK-Micronas GmbH. MAGNETIC SWITCH UNIPOL TO92UA-1. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 140°C (TA), voltage - supply 4.3V ~ 24V, package / case TO-226-3, TO-92-3 (TO-226AA) Formed Leads.

Datasheet Request a Quote

In Stock: 2,902

Specifications

15 parameters
Product StatusObsolete
FunctionUnipolar Switch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range33mT Trip, 15mT Release
Test Condition25°C
Voltage - Supply4.3V ~ 24V
Current - Supply (Max)4.2mA
Current - Output (Max)20mA
Output TypeOpen Drain
FeaturesTemperature Compensated
Operating Temperature-40°C ~ 140°C (TA)
Mounting TypeThrough Hole
Supplier Device PackageTO-92UA-1
Package / CaseTO-226-3, TO-92-3 (TO-226AA) Formed Leads
