HAL506UA-A

In Stock: 6,573

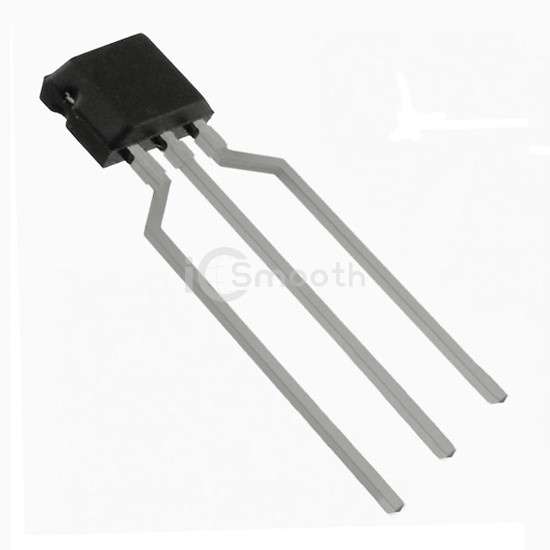

HAL506UA-A - TDK-Micronas GmbH - Magnetic Sensors - Switches (Solid State)
REF: HAL506UA-A TDK-Micronas GmbH
HAL506UA-A

TDK-Micronas GmbH

MAGNETIC SWITCH UNIPOL TO92UA-2

HAL506UA-A is a Magnetic Sensors - Switches (Solid State) manufactured by TDK-Micronas GmbH. MAGNETIC SWITCH UNIPOL TO92UA-2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 170°C (TJ), voltage - supply 3.8V ~ 24V, package / case TO-226-3, TO-92-3 Short Body.

Datasheet Request a Quote

In Stock: 6,573

Specifications

15 parameters
Product StatusObsolete
FunctionUnipolar Switch
TechnologyHall Effect
PolarizationSouth Pole
Sensing Range7.2mT Trip, 2mT Release
Test Condition25°C
Voltage - Supply3.8V ~ 24V
Current - Supply (Max)4.2mA
Current - Output (Max)20mA
Output TypeOpen Drain
FeaturesTemperature Compensated
Operating Temperature-40°C ~ 170°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-92UA-2
Package / CaseTO-226-3, TO-92-3 Short Body
