Name: HAL109TQ-I
Brand: TDK-Micronas GmbH
SKU: HAL109TQ-I
Availability: InStock

REF: HAL109TQ-I TDK-Micronas GmbH

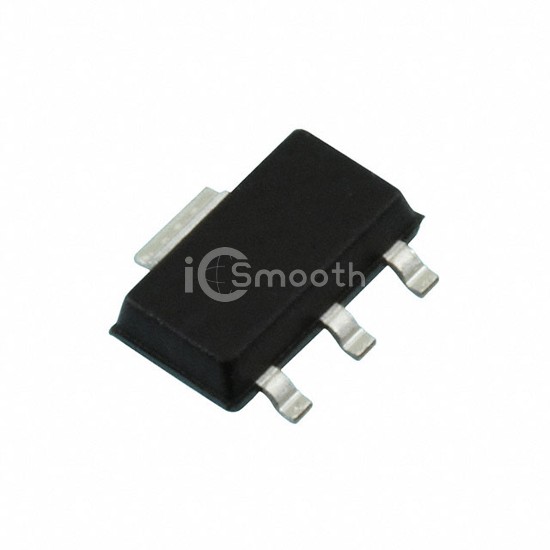

HAL109TQ-I

MAGNETIC SWITCH UNIPOL SOT89B-3

HAL109TQ-I is a Magnetic Sensors - Switches (Solid State) manufactured by TDK-Micronas GmbH. MAGNETIC SWITCH UNIPOL SOT89B-3. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 125°C (TA), voltage - supply 3.8V ~ 24V, package / case TO-243AA, Variant.

Datasheet Request a Quote

In Stock: 4,494

Specifications

15 parameters

Product Status	Obsolete
Function	Unipolar Switch
Technology	Hall Effect
Polarization	South Pole
Sensing Range	12mT Trip, 1.8mT Release
Test Condition	25°C
Voltage - Supply	3.8V ~ 24V
Current - Supply (Max)	5.2mA

Current - Output (Max)	50mA
Output Type	Open Drain
Features	Temperature Compensated
Operating Temperature	-20°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89B-3
Package / Case	TO-243AA, Variant
