U6820BM-MFPG3

In Stock: 8,228

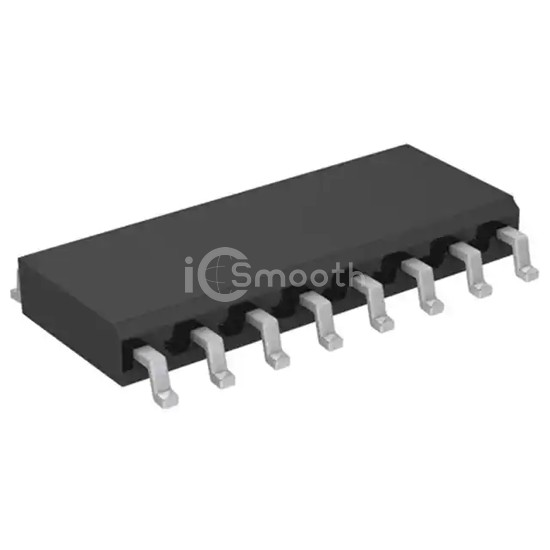

U6820BM-MFPG3 - Microchip Technology - PMIC - Full, Half-Bridge Drivers
REF: U6820BM-MFPG3 Microchip Technology
U6820BM-MFPG3

Microchip Technology

IC DRIVER BCDMOS DUAL/QD 16-SOIC

U6820BM-MFPG3 is a PMIC - Full, Half-Bridge Drivers manufactured by Microchip Technology. IC DRIVER BCDMOS DUAL/QD 16-SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,228

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (4)
ApplicationsGeneral Purpose
InterfaceSPI
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)4Ohm LS, 6.25Ohm HS
Current - Output / Channel-
Current - Peak Output50mA
Voltage - Supply4.5V ~ 5.5V
Voltage - Load6V ~ 18V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesAuto Restart, Status Flag
Fault ProtectionCurrent Limiting, ESD, Short Circuit, Over Temperature, Over Voltage, UVLO
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
