TC4627MJA

In Stock: 8,164

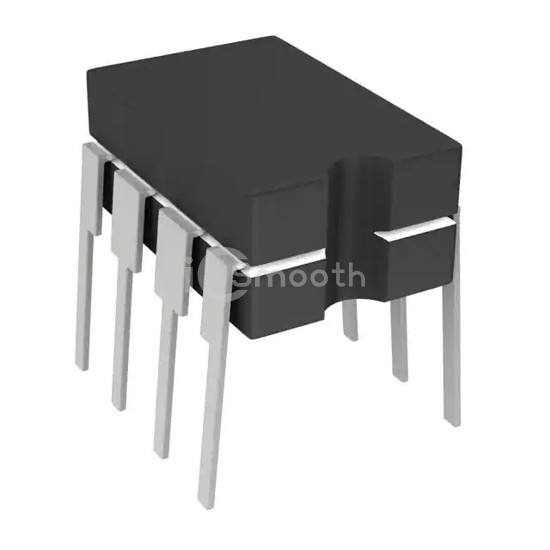

TC4627MJA - Microchip Technology - PMIC - Gate Drivers
REF: TC4627MJA Microchip Technology
TC4627MJA

Microchip Technology

IC GATE DRVR HI/LOW SIDE 8CERDIP

TC4627MJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 4V ~ 6V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,164

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4V ~ 6V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)33ns, 27ns
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case8-CDIP (0.300", 7.62mm)
Supplier Device Package8-CERDIP
