TC4451VAT

In Stock: 50

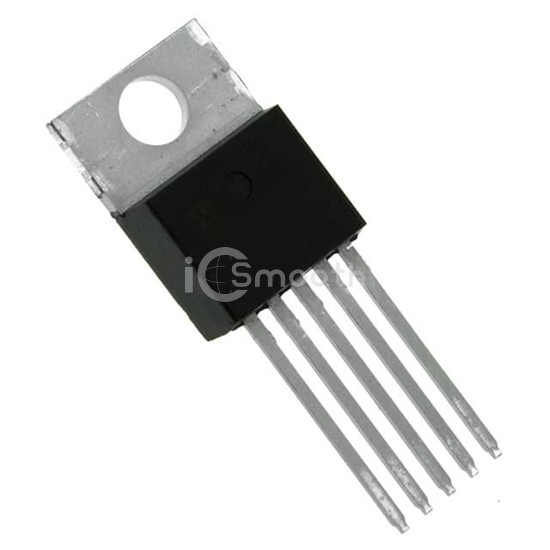

TC4451VAT - Microchip Technology - PMIC - Gate Drivers
REF: TC4451VAT Microchip Technology
TC4451VAT

Microchip Technology

IC GATE DRVR LOW-SIDE TO220-5

TC4451VAT is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case TO-220-5.

Datasheet Request a Quote

In Stock: 50

Tiered Pricing USD
1+ $3.2500 —
25+ $2.7100 -17%
100+ $2.4600 -24% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)13A, 13A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)30ns, 32ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
