TC4431EJA

In Stock: 6,410

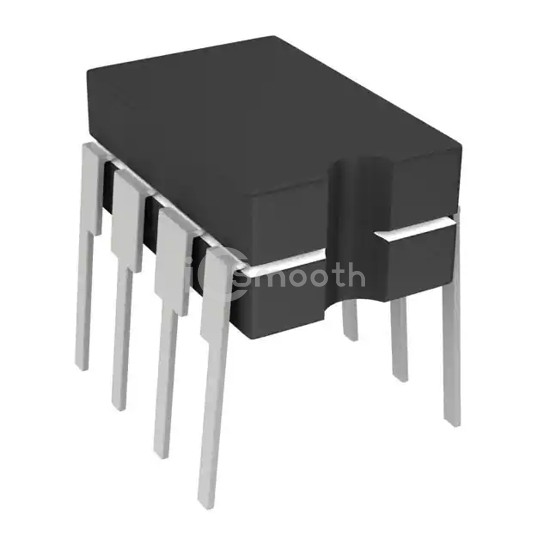

TC4431EJA - Microchip Technology - PMIC - Gate Drivers
REF: TC4431EJA Microchip Technology
TC4431EJA

Microchip Technology

IC GATE DRVR HI/LOW SIDE 8CERDIP

TC4431EJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 30V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6,410

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 30V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)25ns, 33ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case8-CDIP (0.300", 7.62mm)
Supplier Device Package8-CERDIP
