TC4405MJA

In Stock: 4,999

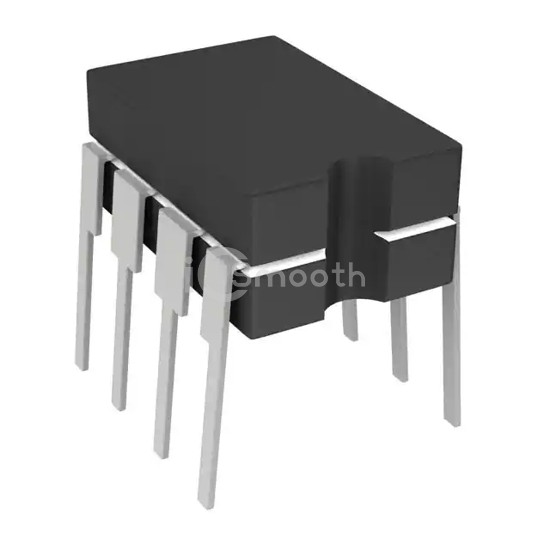

TC4405MJA - Microchip Technology - PMIC - Gate Drivers
REF: TC4405MJA Microchip Technology
TC4405MJA

Microchip Technology

IC GATE DRVR LOW-SIDE 8CERDIP

TC4405MJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,999

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)40ns, 40ns (Max)
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case8-CDIP (0.300", 7.62mm)
Supplier Device Package8-CERDIP
