TC429MJA

In Stock: 3,667

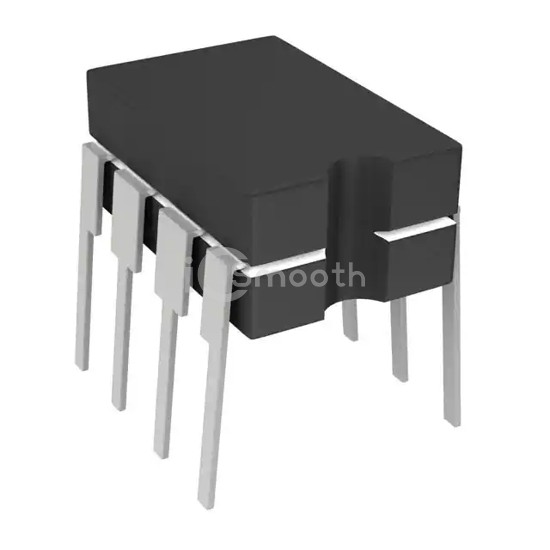

TC429MJA - Microchip Technology - PMIC - Gate Drivers
REF: TC429MJA Microchip Technology
TC429MJA

Microchip Technology

IC GATE DRVR LOW-SIDE 8CERDIP

TC429MJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), voltage - supply 7V ~ 18V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,667

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply7V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)6A, 6A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)23ns, 25ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case8-CDIP (0.300", 7.62mm)
Supplier Device Package8-CERDIP
