TC1301A-AAAVMF

In Stock: 6,150

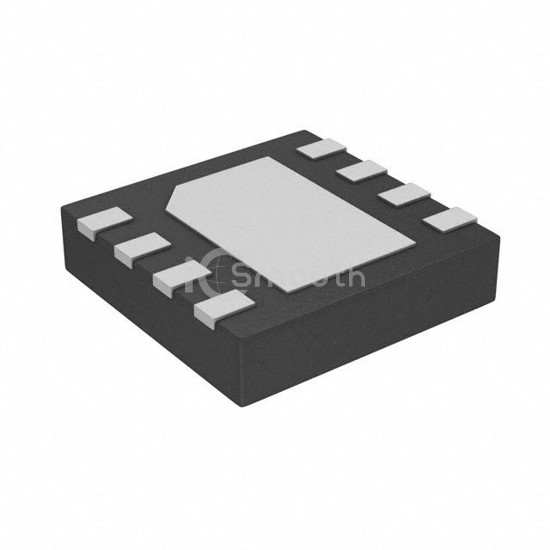

TC1301A-AAAVMF - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: TC1301A-AAAVMF Microchip Technology
TC1301A-AAAVMF

Microchip Technology

IC REG LIN 3.3V/3.3V/2.63V 8DFN

TC1301A-AAAVMF is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LIN 3.3V/3.3V/2.63V 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VDFN Exposed Pad, current - output 300mA, 150mA.

Datasheet Request a Quote

In Stock: 6,150

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)3.3V, 3.3V, 2.63V
Voltage - Output (Max)-
Voltage Dropout (Max)0.18V @ 300mA, 0.25V @ 150mA
Current - Output300mA, 150mA
Current - Quiescent (Iq)180 µA
Current - Supply (Max)-
PSRR58dB (100Hz)
Control FeaturesEnable, Reset
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-VDFN Exposed Pad
Supplier Device Package8-DFN (3x3)
