Name: TC1265-2.5VETTR
Brand: Microchip Technology
SKU: TC1265-2.5VETTR
Price: 1.13 USD
Availability: InStock

REF: TC1265-2.5VETTR Microchip Technology

TC1265-2.5VETTR

Microchip Technology

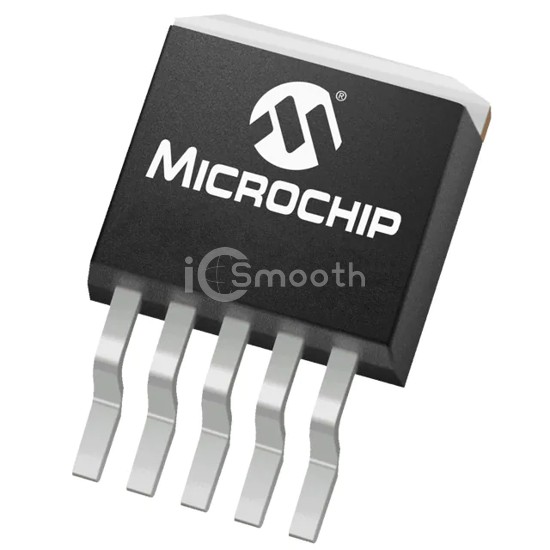

IC REG LINEAR 2.5V 800MA 5DDPAK

TC1265-2.5VETTR is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 2.5V 800MA 5DDPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 800mA.

Datasheet Request a Quote

In Stock: 5,943

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.4V @ 800mA
Current - Output	800mA

Current - Quiescent (Iq)	130 µA
Current - Supply (Max)	-
PSRR	64dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	5-DDPAK
