SY10E404JZ TR

In Stock: 2,453

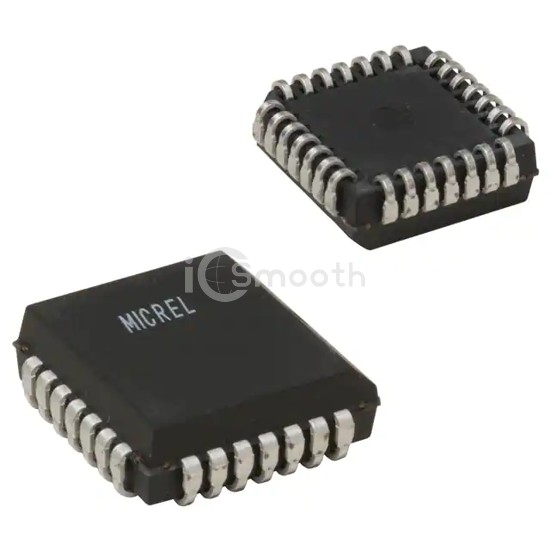

SY10E404JZ TR - Microchip Technology - Logic - Gates and Inverters - Multi-Function, Configurable
REF: SY10E404JZ TR Microchip Technology
SY10E404JZ TR

Microchip Technology

IC GATE AND/NAND QUAD 28-PLCC

SY10E404JZ TR is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by Microchip Technology. IC GATE AND/NAND QUAD 28-PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C, voltage - supply 4.2V ~ 5.5V, package / case 28-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 2,453

Specifications

12 parameters
Product StatusObsolete
Logic TypeAND/NAND Gate
Number of Circuits4
Number of Inputs8 Input (2, 2, 2, 2)
Schmitt Trigger InputNo
Output TypeDifferential
Current - Output High, Low-
Voltage - Supply4.2V ~ 5.5V
Operating Temperature0°C ~ 85°C
Mounting TypeSurface Mount
Package / Case28-LCC (J-Lead)
Supplier Device Package28-PLCC (11.48x11.48)
