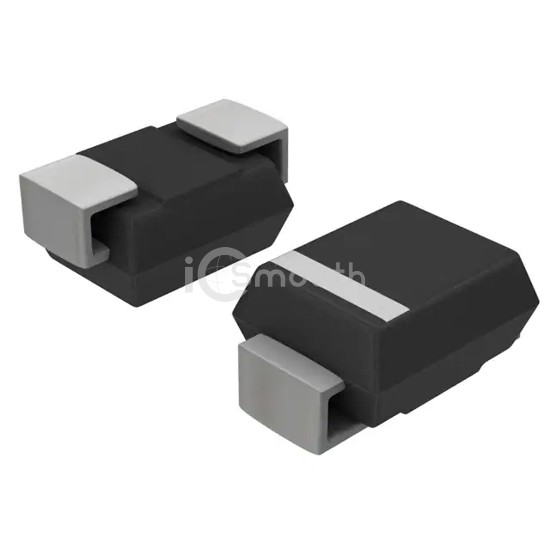

TVS DIODE 22VWM 35.5VC DO214AB
SMCJ22AE3/TR13 is a TVS - Diodes manufactured by Microchip Technology. TVS DIODE 22VWM 35.5VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AB, SMC.
In Stock: 7,077
| Product Status | Active |
|---|---|
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V |
| Current - Peak Pulse (10/1000µs) | 42.2A |
| Power - Peak Pulse | 1500W (1.5kW) |
|---|---|
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
