SMBJ4748A/TR13

In Stock: 6,105

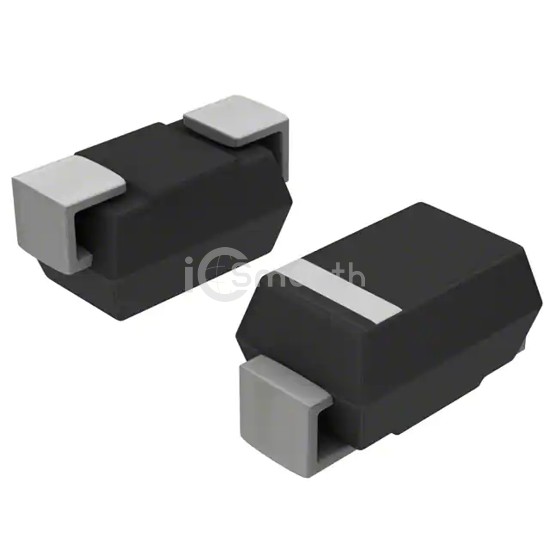

SMBJ4748A/TR13 - Microchip Technology - Diodes - Zener - Single
REF: SMBJ4748A/TR13 Microchip Technology
SMBJ4748A/TR13

Microchip Technology

DIODE ZENER 22V 2W SMBJ

SMBJ4748A/TR13 is a Diodes - Zener - Single manufactured by Microchip Technology. DIODE ZENER 22V 2W SMBJ. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C, package / case DO-214AA, SMB, power - max 2 W.

Datasheet Request a Quote

In Stock: 6,105

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±5%
Power - Max2 W
Impedance (Max) (Zzt)23 Ohms
Current - Reverse Leakage @ Vr5 µA @ 16.7 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageSMBJ (DO-214AA)
