Name: SG7905T-JAN
Brand: Microchip Technology
SKU: SG7905T-JAN
Availability: InStock

REF: SG7905T-JAN Microchip Technology

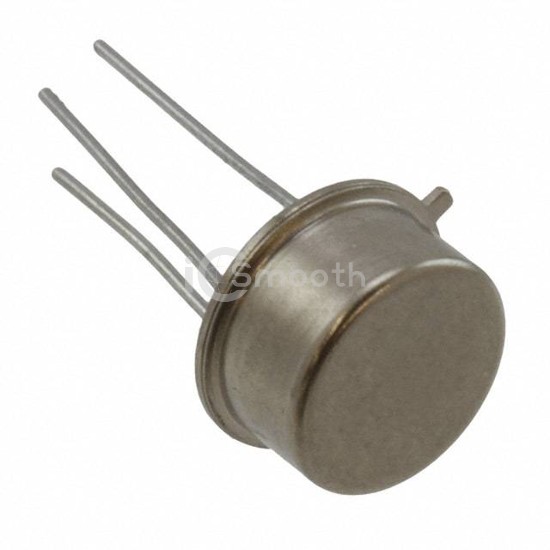

SG7905T-JAN

IC REG LINEAR -5V 1.5A TO39

SG7905T-JAN is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR -5V 1.5A TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-205AD, TO-39-3 Metal Can, current - output 1.5A.

Datasheet Request a Quote

In Stock: 4,889

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	-35V
Voltage - Output (Min/Fixed)	-5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2.3V @ 500mA
Current - Output	1.5A

Current - Quiescent (Iq)	2.5 mA
Current - Supply (Max)	-
PSRR	54dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Thermal Shutdown
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
