SG7905AT

In Stock: 6,773

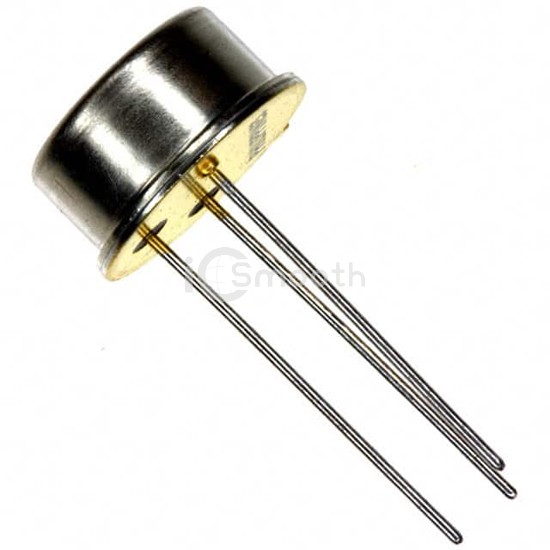

SG7905AT - Microchip Technology - PMIC - Voltage Regulators - Linear
REF: SG7905AT Microchip Technology
SG7905AT

Microchip Technology

IC REG LINEAR -5V 500MA TO99

SG7905AT is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR -5V 500MA TO99. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-39, current - output 500mA.

Datasheet Request a Quote

In Stock: 6,773

Specifications

18 parameters
Product StatusActive
Output ConfigurationNegative
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)-35V
Voltage - Output (Min/Fixed)-5V
Voltage - Output (Max)-
Voltage Dropout (Max)2.3V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)2.5 mA
Current - Supply (Max)-
PSRR54dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-55°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-39
Supplier Device PackageTO-99
