Name: SG7815T-JAN
Brand: Microchip Technology
SKU: SG7815T-JAN
Availability: InStock

REF: SG7815T-JAN Microchip Technology

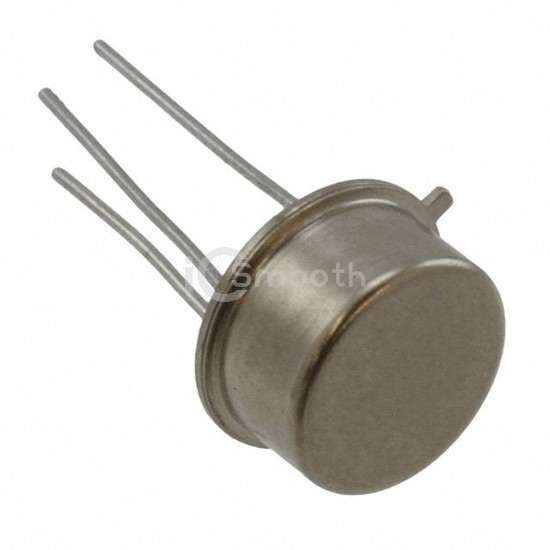

SG7815T-JAN

IC REG LINEAR 15V 500MA TO39

SG7815T-JAN is a PMIC - Voltage Regulators - Linear manufactured by Microchip Technology. IC REG LINEAR 15V 500MA TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case TO-205AD, TO-39-3 Metal Can, current - output 500mA.

Datasheet Request a Quote

In Stock: 6,802

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	35V
Voltage - Output (Min/Fixed)	15V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2.5V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	7 mA
Current - Supply (Max)	-
PSRR	60dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
